Product Details
Place of Origin: Guangdong, China
Brand Name: WAY-C
Model Number: YAMAHA FZ16
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 100 pieces
Price: $5.00/pieces 100-990 pieces
Packaging Details: Box+CARTON
Delivery Time: 30-45days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 Piece/Pieces per Month
Model: |
YAMAHA FZ16 |
Product Name: |
Magneto Coil |
MOQ: |
100PCS |
Material: |
Copper |
Quality: |
High Qaulity |
Shipping: |
Sea Transport.Air Transport Air Express |
Port: |
NANSHA/HUANGPU, GUANGZHOU |
Parts NO: |
H1410 00 |
Model: |
YAMAHA FZ16 |
Product Name: |
Magneto Coil |
MOQ: |
100PCS |
Material: |
Copper |
Quality: |
High Qaulity |
Shipping: |
Sea Transport.Air Transport Air Express |
Port: |
NANSHA/HUANGPU, GUANGZHOU |
Parts NO: |
H1410 00 |

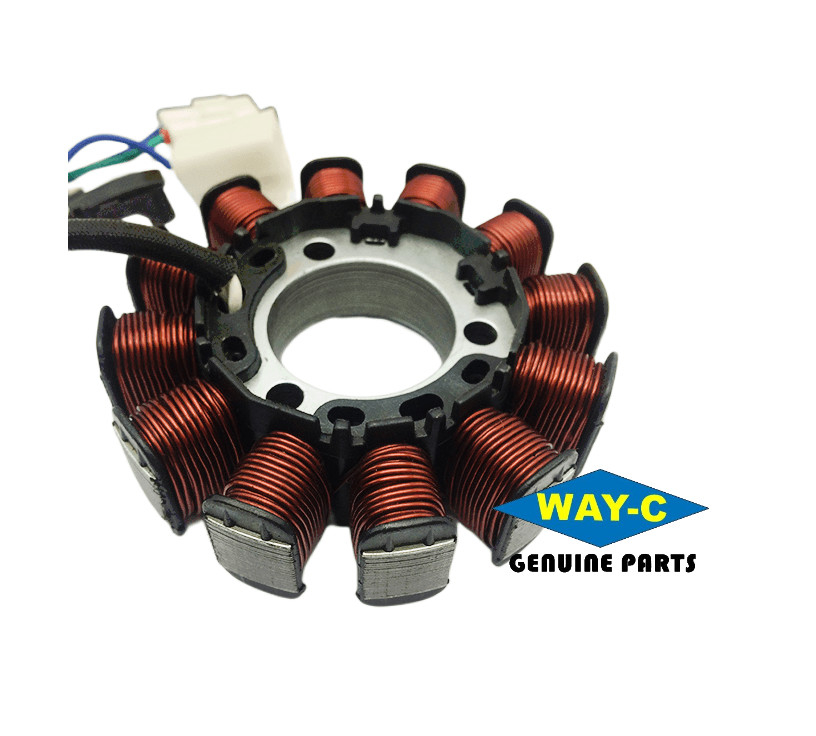

| Product name | Stator Assy |
| Model | YAMAHA FZ16 |
| Materials | Copper |
| Parts NO | H1410 00 |
| Packing | Box |
| Shipping | Sea/Air |
| Place of origin | Guangzhou,China |
The motorcycle magneto coil is mainly composed of a trigger coil, a magneto coil and an ignition coil
This type of magneto coil generally has five wires
The four wires are the yellow wire and the pink wire, the blue and white wire and the green and white wire, which are the charging coil wire and the trigger coil wire, respectively.
1. The black red line is the ignition coil, and the connecting wire is directly connected to the igniter.
2. The blue and white wire and the green and white wire are the trigger coils, and the connecting wires are also directly connected to the igniter.
3. The yellow wire and pink red wire are connected to the charging coil, and the wire is directly connected to the rectifier regulator.
Under normal circumstances, the color of the motorcycle line is basically unified, but individual brand models may have slightly different colors, so the connection can not be blindly connected to each other with the same color, and the characteristics of the connecting wires must be clarified in order to connect with each other, otherwise it is easy to damage other electrical components.
The coil in a circuit refers to an inductor. The guide wires are wound one by one, and the wires are insulated from each other, while the insulating tube can be hollow, or it can contain an iron core or a magnetic powder core, referred to as an inductor. Inductance can be divided into fixed inductance and variable inductance, and fixed inductance coils are referred to as inductors or coils. Expressed in L, the units are henry (H), millihenry (mH), microhenry (uH), 1H = 10^3mH = 10^6uH.
Please choose WAY-C to ensure that the generator stator assembly purchased meets the standards and specifications.
